| The THE SUN Collection – More power – Less space

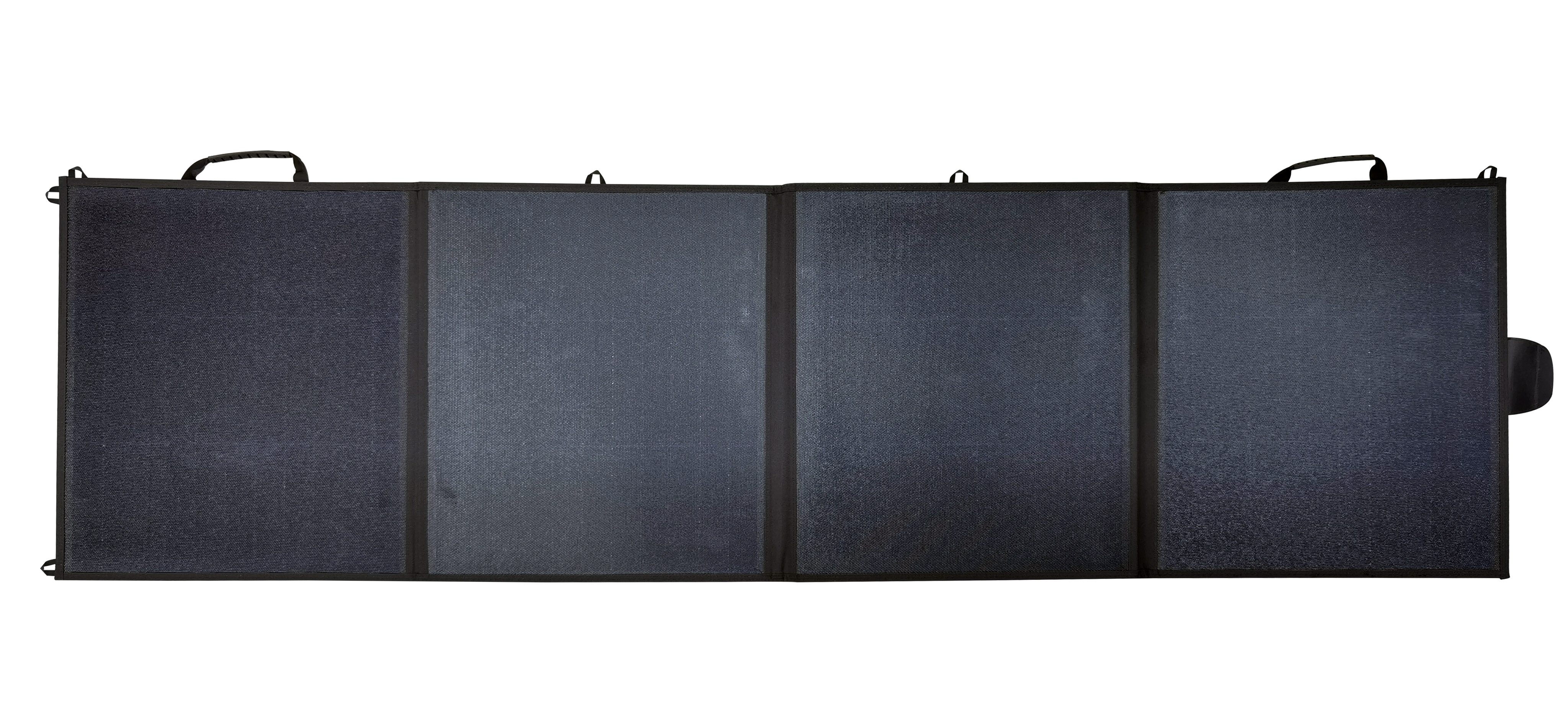

tHe Sunfold

Technology for maximum solar power output, robust, flexible and portable! The use of HPBC back-contact cells ensures high efficiency. Comes with a 3 m charging cable and USB-A/USB-C charging ports directly in the practical storage compartment. The module can be easily folded up and has practical carrying handles and stands for optimal placement.

The advantages at a glance

  • Split cells to prevent power loss in partial shade
  • coating
  • Cell interconnection and number of cells optimised for low light conditions
  • Flexible and portable
  • Practical storage compartment for charging cables
  • Practical carrying handles
  • Fold-out displays for optimal placement
tHENERGY Solar
tHE Sunfold 110
tHE Sunfold 165
tHE Sunfold 220
Nominal power 110 Wp 165 Wp 220 Wp
Open-circuit voltage (Voc) 23.76 V 23.76 V 23.76 V
Short-circuit current (Isc) 5.98 A 8.97 A 11.96 A
Voltage at maximum power (Vmp)

19.8 V

 19.8 V 19.8 V

Current at maximum power (Imp)

 5.54 A 8.31 A 11.08 A
Mechanical parameters
dimensions 1020 x 510 mm
(590 x 510) mm		 1540 x 510 mm
(590 x 510) mm		 2060 x 590 mm
(590 x 510) mm
Weight 4 kg 6,2 kg 7,1 kg
protection class IP44 IP44 IP44
Number of cells 66 99 132

Number of modules (per panel)

 2 3 4

Cell type

 HPBC HPBC HPBC

Scope of delivery

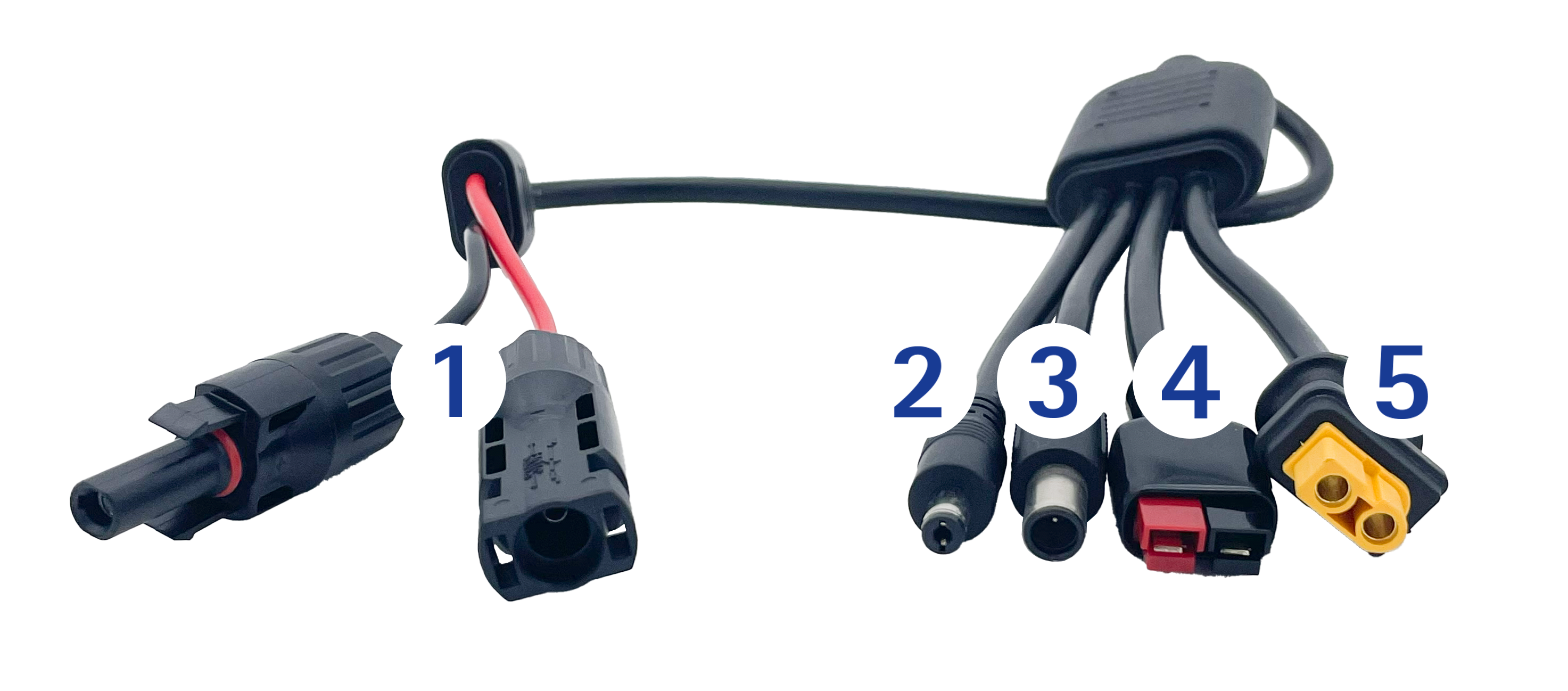

  • Iconnection adapter
