| The THE SUN Collection – More power – Less space

tHe Sunflex

The Sunflex series offers high-quality flat modules for direct installation on vehicle roofs. They are extremely thin and lightweight and, thanks to the use of HPBC back-contact cells, have a high efficiency rating even at high temperatures.

The advantages at a glance

  • ï¡ŒSplit cells to prevent power loss in partial shade
  • ï—½coating
  • walk-in, flat structure with low weight
  • roof duct
  • Pre-assembled MC4 solar connectors, reverse polarity protected
  • ï–ºCell interconnection and number of cells optimised for low light conditions
tHENERGY Solar
tHE Sunflex 105
tHE Sunflex 130

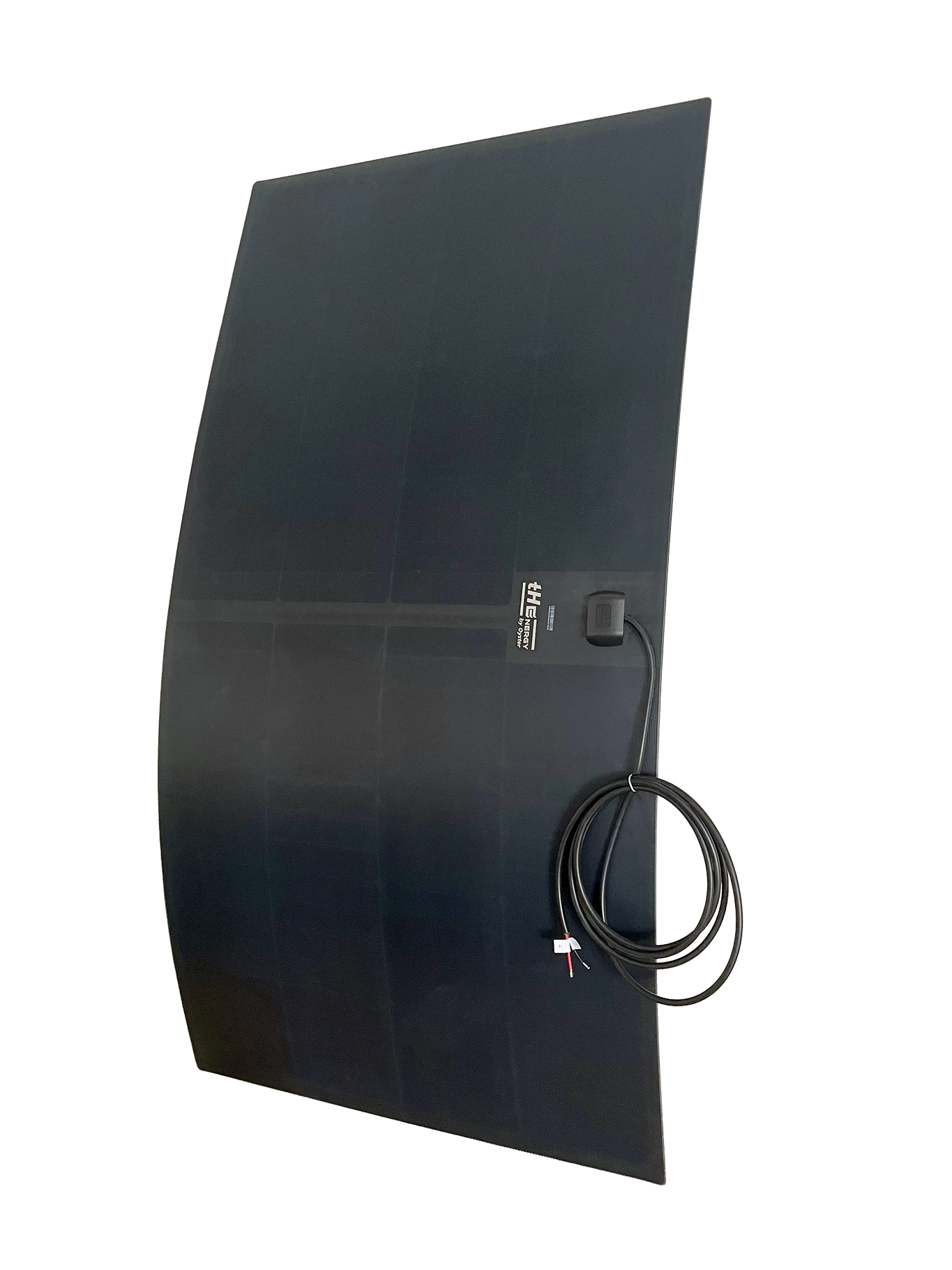

tHE Sunflex 170
tHE Sunflex 210
Nominal power 105 Wp 130 Wp 170 Wp 210 Wp
Open-circuit voltage (Voc) 31.9 V 26.3 V 35.5 V 43.5 V
Short-circuit current (Isc) 4.19 A 6.29 A 6.11 A 6.15 A
Voltage at maximum power (Vmp)

26.3 V

 21.7 V 29.2 V 36.0 V

Current at maximum power (Imp)

 4.00 A 6.00 A 5.83 A 5.84 A
Mechanical parameters
dimensions 1037 x 585 x 2,50 mm 1252 x 585 x 2,50 mm 1269 x 772 x 2,50 mm 1531 x 772 x 2,50 mm
Dimensions including
junction box		 1037 x 585 x 27 mm 1252 x 585 x 27 mm 1269 x 772 x 27 mm 1531 x 772 x 27 mm
Weight 2,4 kg 2,9 kg 3,9 kg 4,7 kg
protection class IP65 IP65 IP65 IP65
Number of cells 92 76 102 126

Number of modules (per panel)

 2 parallel 2 parallel 2 parallel 2 parallel

Cell type

 HPBC HPBC HPBC HPBC

Scope of delivery

  • Roof duct with sealing insert for round cables, permanently attached
