| The SUN Collection – More power – Less space

tHe Sunsolid

Sunsolid modules are lightweight and flat yet robust modules with a stable and torsion-resistant frame design, integrated spoiler and adhesive profile for direct bonding to the roof. The use of HPBC back-contact cells gives them a high efficiency rating.

The advantages at a glance

  • Split cells to prevent power loss in partial shade
  • Integrated mounting spoiler, resulting in a flatter design
  • Pre-assembled MC4 solar connectors, reverse polarity protected
  • Screw-on spoiler for easy module replacement
tH ENERGY Solar
tHE Sunsolid 100
tHE Sunsolid 120
tHE Sunsolid 145
tHE Sunsolid 190
tHE Sunsolid 235
Nominal power 100 Wp 120 Wp 145 Wp 190 Wp 235 Wp
Open-circuit voltage (Voc) 27,7 V 33,3 V 27,0 V 36,2 V 44,0 V
Short-circuit current (Isc) 4,59 A 4,59 A 6,85 A 6,69 A 6,81 A
Voltage at maximum power (Vmp)

22,9 V

 27,5 V 22,3 V 29,8 V 36,6 V

Current at maximum power (Imp)

 4,37 A 4,37 A 6,51 A 6,38 A 6,43 A
Mechanical parameters

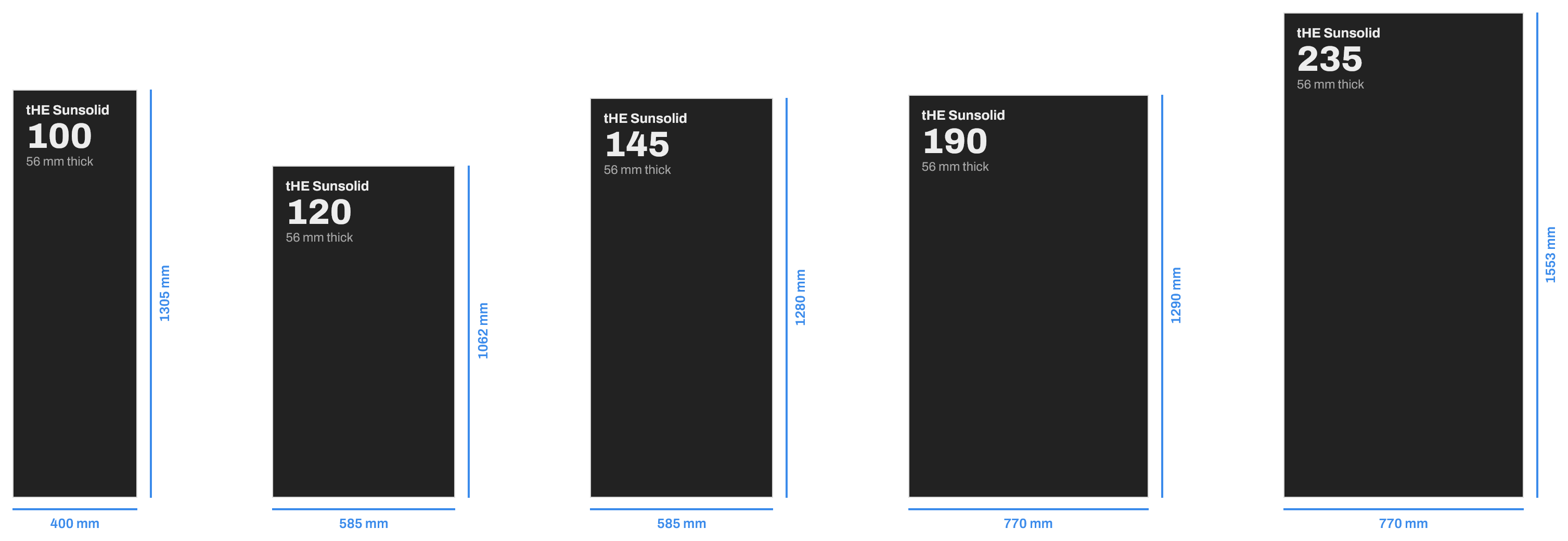

dimensions 1305 x 400 x 56 mm 1062 x 585 x 56 mm 1280 x 585 x 56 mm 1290 x 770 x 56 mm 1553 x 770 x 56 mm
Weight 5,6 kg 6,8 kg 8,0 kg 10,8 kg 12,6 kg
protection class IP65 IP65 IP65 IP65 IP65
Number of cells 80 96 78 104 128

Number of modules (per panel)

 2 parallel 2 parallel 2 parallel 2 parallel 2 parallel

Cell type

 HPBC HPBC HPBC HPBC HPBC

Scope of delivery

  • IPre-assembled mounting spoiler

Optional to order

  • Iconnection cable set
  • Iroof duct
